Components Aluminium

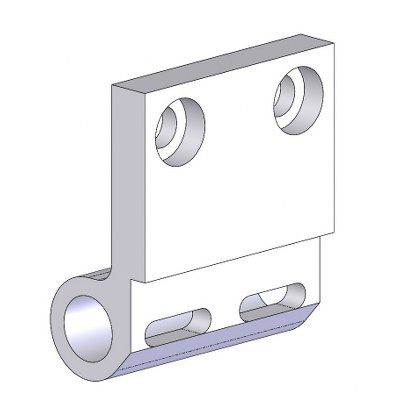

Hinge support for A40777 profile

Cod. N50131 NEW B1050-002141 MEASURE ASSEMBLY EXAMPLES

Central Sheet Hinge support. Solution only with plastic sheet and A40777 (MP97) profile.

Height dimension: 40mm

Weight: Kg

Finish: silver anodized

Delivery condition: In stock

Note: Solution utilized with Q30 series tubular profile and Q.45 series structural profile. The solution the opportunity to have plastic sheet material in the same level of the frame (not in evidence)

Optional mounting accessories

Cod. L21123
NEW B1050-001986
Right cover cap for MP97 profile

Cod. L21122
NEW B1050-001985
Left cover cap for MP97 profile

Cod. N30186
NEW B1080-001526

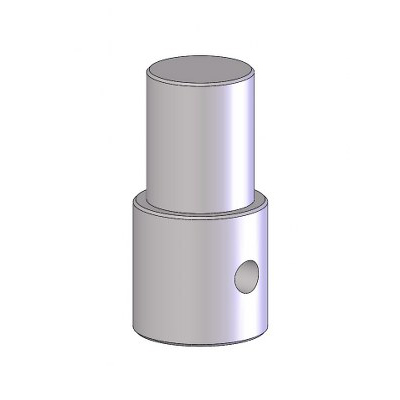

Hinge pin D.8/D.16mm H=20mm

Cod. A40777
NEW B1020-004224
Aluminium profile MP97

Cod. SF05006

Seal for profile type MP97/MP98

Cod. L16103
NEW B1080-001395
Hinge bushing H=18

Cod. F10538
NEW B1080-000445
Stainless steel socket head cap screw M6x20 T=4

Cod. M031402

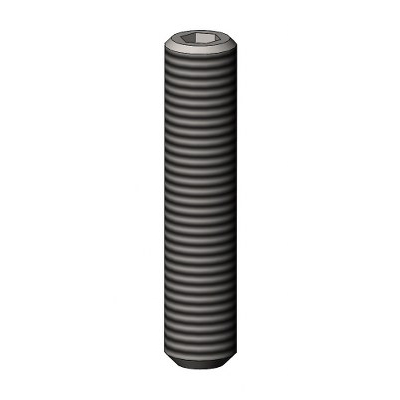

Wheat M3x14 UNI-5923
