Components Stainless steel

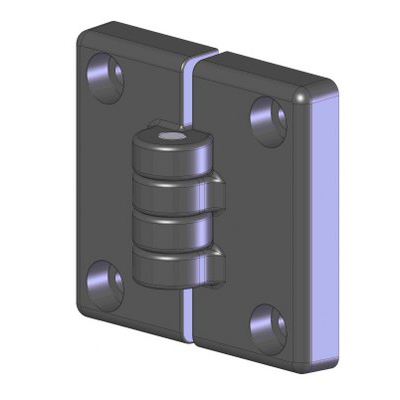

Polyamide hinge 60x66x22mm

Cod. F31175A NEW B1050-001364 MEASURE

Polyamide hinge assembled

Finish: colour RAL 7039

Weight: 0,057 Kg

Delivery condition: box with 10 pieces

Note: competens to use aluminium profile Q.45mm, Q90mm and 45x90mm (structural line) with glass/plastic material doors or same section aluminium profile door.

Optional mounting accessories

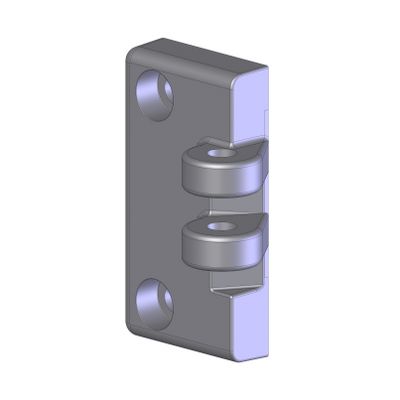

Cod. L19182A

Polyamide RAL7039 semi-hinge, 60x32x10

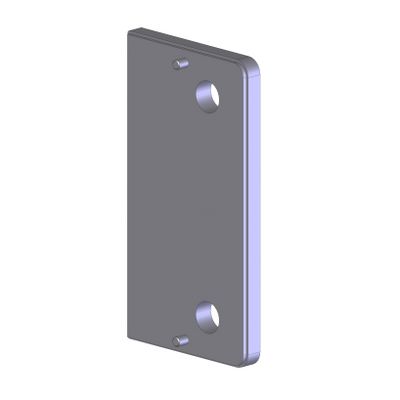

Cod. L19183A

Semi-hinge spacer for L19182A thickness 4mm

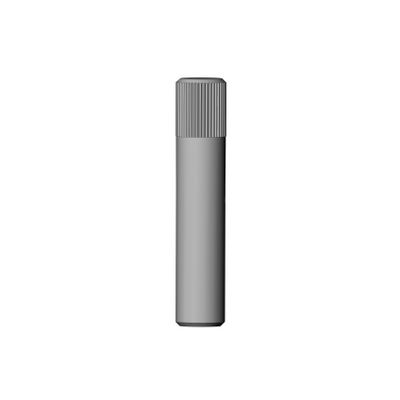

Cod. N30158

Stainless steel pin D6x30

Cod. F10534

Stainless steel socket head cap screw M6x16

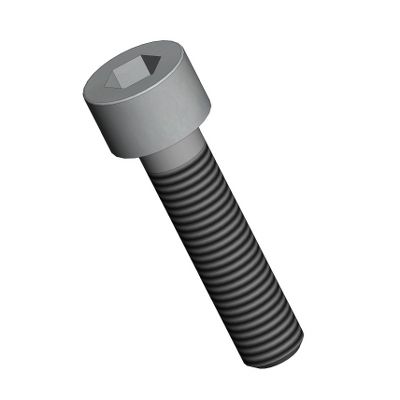

Cod. F10545

Stainless steel socket head cap screw M6x18

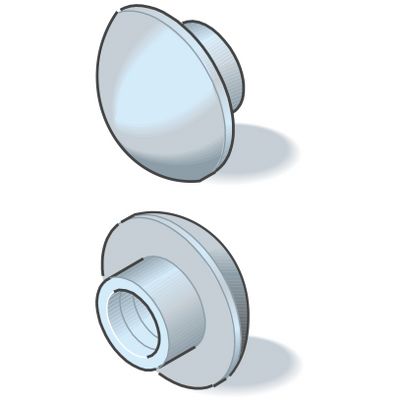

Cod. N90209
NEW B1080-000118
M6 threaded bushing in Aisi 304

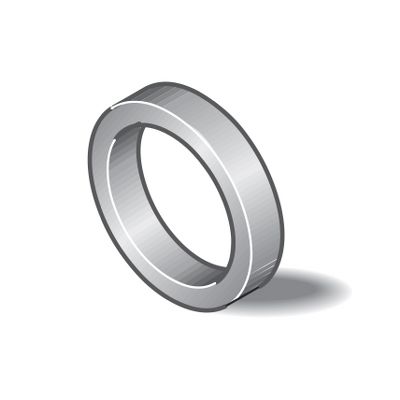

Cod. F12707

Black Polyethylene washer dia. 20 / Dia. 10 mm
