Fixed profile with separator and side recess
Cod. FX_CHIAVE-04

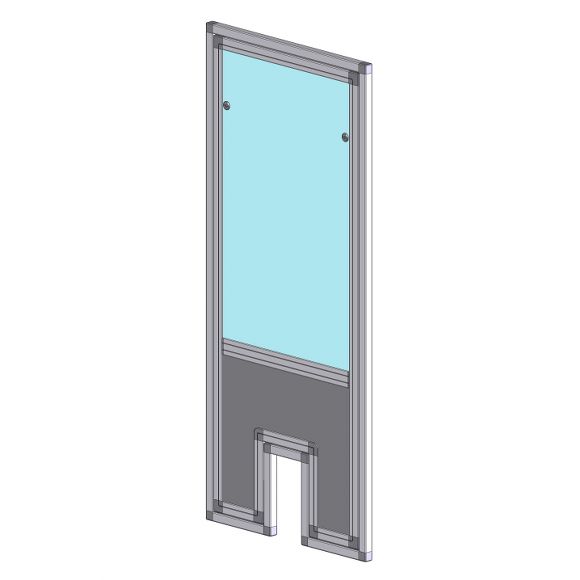

3D VISUALIZATION
Frame profiles:
A40710-A40709-A40707
Panel profiles:
A40801-A40701
Separating profiles:
A40808-A40708
2-way couplings:
L15812-L15802-L15842-L15840-L15838-L15830-L15814-L15804
Separating couplings:
L15843-L15841-L15844-L15829
Mouldings for coupling:
L15847,L15846,L15826,L15821
Lock:
F30128-F30228
Lower pin:
L16102
Seal:
F50150 (for A40707)-F50805 (for profiles with seal, only)
Accessories:
L19155-L19156 (does not make use of A40707)-F21404
View Components
| New Code | |
| A40710 | B1020-003482 |
| A40709 | B1020-003480 |
| A40707 | B1020-003476 |
| A40801 | B1020-003494 |
| A40701 | B1020-003471 |
| A40808 | B1020-003498 |
| A40708 | B1020-003478 |
| L15812 | B1050-000091 |
| L15802 | B1050-000085 |
| L15842 | B1050-000102 |
| L15840 | B1050-000100 |
| L15838 | B1050-001896 |
| L15830 | B1050-000099 |
| L15843 | B1050-000103 |
| L15841 | B1050-000101 |
| L15844 | B1050-001903 |
| L15829 | B1050-000098 |
| F30128 | B1050-000147 |
| F30228 | B1050-000150 |
| L16102 | B1080-000038 |
| F50150 | B1050-000223 |
| F50805 | B1050-001451 |
| L19155 | |
| L19156 | |
| F21404 |
