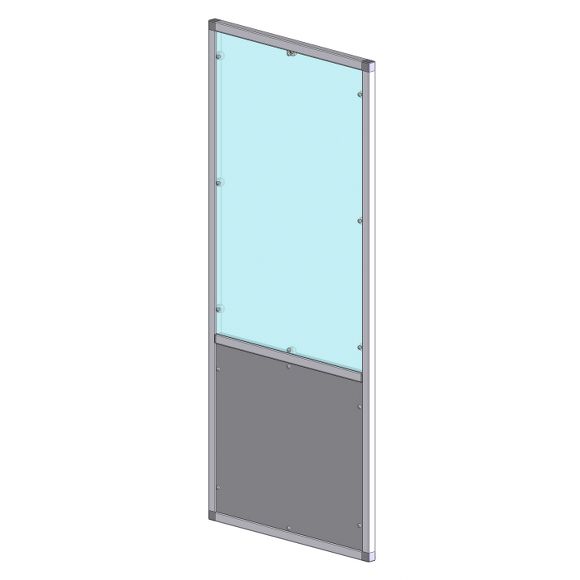

Fixed removable profile with separator

Cod. FX_ASP-04 3D VISUALIZATION

Frame profiles:
A40710-A40709

1-way coupling:
L15811-L15801-L15511-L15501

2-way couplings:
L15812-L15802-L15817-L15807

Sheet support:
L15137-L15131-L15136-L19133A-L19134A-L19134B-L119133B

View Components

New Code
A40710 B1020-003482
A40709 B1020-003480
L15811 B1050-000090
L15801 B1050-000084
L15511 B1050-001823
L15501 B1050-001822
L15812 B1050-000091
L15802 B1050-000085
L15817 B1050-000094
L15807 B1050-001884
L15137
L15131
L15136
L19133A
L19133B
L19134A
L19134B
