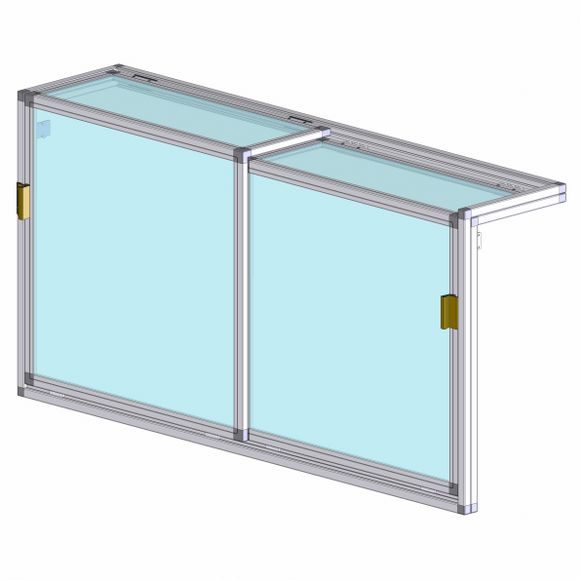

Double "L"-shaped sliding door with Butterfly handle

Cod. SCORR2-04 3D VISUALIZATION

Components

Frame profiles:
A40730-A40723-A40769-A40710

Door profiles:
A40801-A40701-A40815-A40715

2-way couplings:
L15812-L15840-L15830

3-way couplings:
L15850,L15803

Handle:
F31161A

Seal:
F50805 (for profile A40701, only)

Accessories:
N25013-L21112-F21901-F11304-N40132-F22530-N90902-N40133-L16201-N30184

View Components

	New Code
A40730	B1020-003491
A40723	B1020-003487
A40710	B1020-003482
A40769	B1020-004208
A40801	B1020-003494
A40701	B1020-003471
A40815	B1020-003501
A40715	B1020-004137
L15812	B1050-000091
L15840	B1050-000100
L15830	B1050-000099
L15850	B1050-000105
L15803	B1050-000086
F31161A
F50805	B1050-001451
N25013
L21112	B1050-000166
F21901
F11304	B1080-001252
N40132	B1050-002111
F22530	B1010-144709
N90902	B1050-002153
N40133	B1050-002112
L16201	B1050-001944
N30184	B1080-001524
