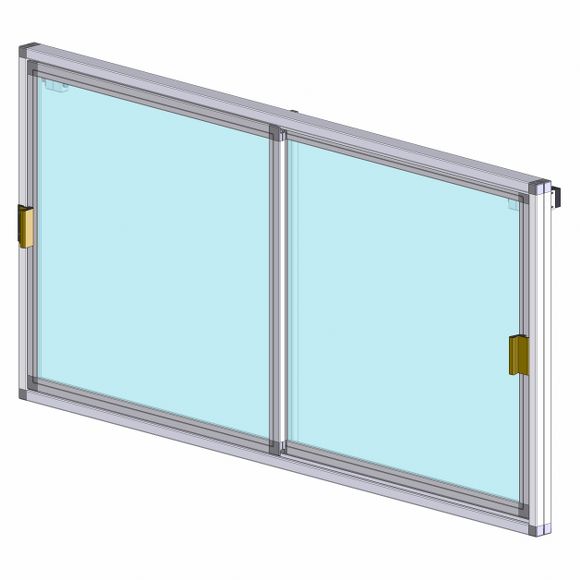

Double sliding door with Butterfly handle

Cod. SCORR2-03 3D VISUALIZATION

Frame profiles:
A40730-A40723-A40710

Door profiles:
A40822-A40801-A40722-A40701

2-way couplings:
L15812-N15849-L15840-L15830

Handle:
F31161A

Seal:
F50805 (for profile A40701, only)

Accessories:
N25013-L21112-F21901-F11304-N40132-F22530-N90902

View Components

New Code
A40730 B1020-003491
A40723 B1020-003487
A40710 B1020-003482
A40822 B1020-003506
A40801 B1020-003494
A40722 B1020-003486
A40701 B1020-003471
L15812 B1050-000091
N15849 B1050-000104
L15840 B1050-000100
L15830 B1050-000099
F31161A
F50805 B1050-001451
N25013
L21112 B1050-000166
F21901
F11304 B1080-001252
N40132 B1050-002111
F22530 B1010-144709
N90902 B1050-002153
