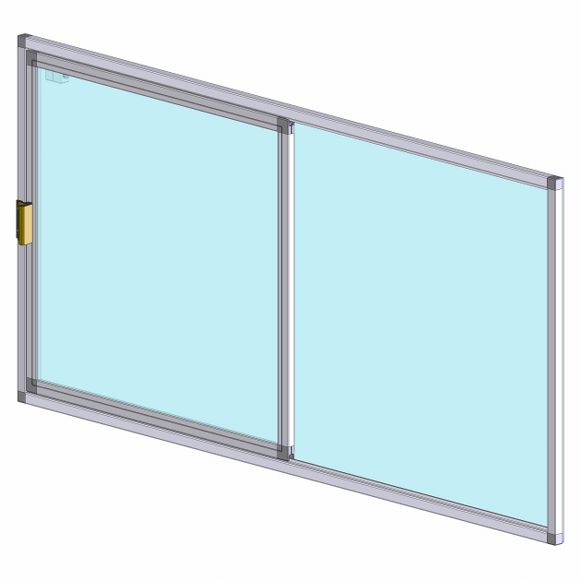

Single sliding door

Cod. SCORR1-01 3D VISUALIZATION

Frame profiles:
A40767-A40710

Door profile:
A40801-A40701

2-way couplings:
L15812

Handle:
F31161A

Seals:
F50805

Accessories:
N25013-L21112-F21901-F11304

View Components

New Code
A40767 B1020-003493
A40710 B1020-003482
A40801 B1020-003494
A40701 B1020-003471
L15812 B1050-000091
F11161A
F50805 B1050-001451
N25013
L21112 B1050-000166
F21901
F11304 B1080-001252
