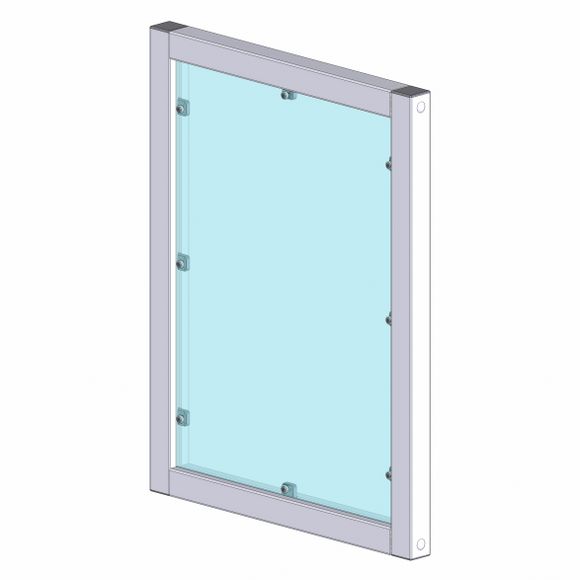

Fixed panel with frame section 45 mm

Cod. FX_ASP_STRUTT-02 3D VISUALIZATION

Frame profile:
SA01001-SA01001L-SA01005-SA01005L

Cover:
SL01005

Seals:
SF05000-SF05001 (only for SA01001 profile)- SF05002 (for the plastic material)

Accessories:
SL01011-SL04001-F12749

View Components

New Code
SA01001 B1020-004440
SA01001L B1020-004442
SA01005 B1020-004454
SA01005L B1020-004457
SL01005
SF05000 B1050-000226
SF05001 B1050-002289
SF05002 B1050-002290
SL01011 B1050-000176
SL04001
F12749 B1080-001296
