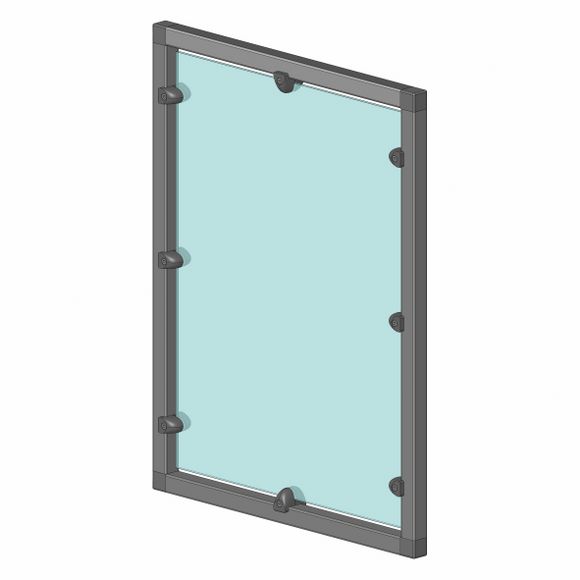

Stainless steel fixed removable panel with clamp

Cod. FX_ASP_INOX-01 3D VISUALIZATION

Frame profiles:
A21617-A21612-A21611

2-way polyamide couplings:
L15812-L15802-L15876A

2-way stainless steel couplings:
L15912-L15902

Sheet support:
L19133A-L19134A-L19134B-L119133B

View Components

New Code
A21617 B1020-003177
A21612 B1020-003898
A21611 B1020-003897
L15812 B1050-000091
L15802 B1050-000085
L15876A B1050-001931
L15912 B1050-000109
L15902 B1050-001941
L19133A-L19134A-L19134B-L119133B
